Die Springs DIN & ISO - Part number Febrotec: 0R203-410
[ 203-410 | R203410 | OR203-410 ]

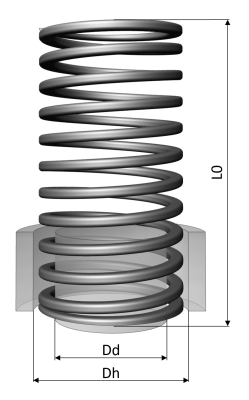

| Hole ø | Dh | 20 [mm] |
| Shaft ø | Dd | 10 [mm] |
| Unloaded Length | L0 | 64 [mm] |
| Spring Rate | c | 20 [N/mm] |
| Deflection | s1 (dyn) | 16 [mm] |
| Force at Deflection s1 | F1 (dyn) | 320 [N] |
| Maximum Deflection | sn (stat) | 22.4 [mm] |
| Force at Max. Defl. | Fn (stat) | 448 [N] |
| Type | ISO 10243 | |
| Colour Code | grün/green | |
| Wire Height | h | 1.9 [mm] |
| Wire Width | b | 4.200 [mm] |
| Amount | Price €/Piece |
|---|---|
| 1 | 23.9800 EUR |
| 10 | 5.2800 EUR |
| 100 | 2.7360 EUR |
| 500 | 2.5992 EUR |
| 1000 | 2.4692 EUR |
| 10000 | 2.3458 EUR |
| Delivery time | Stock quantity |
|---|---|
| 7 Days | 62 |
| 28 Days | 45 |
| Total | 107 |
| Further parts | on request |
CAD preview
Download CAD
