Constant Force Springs - Part number Febrotec: 0CF017-0103

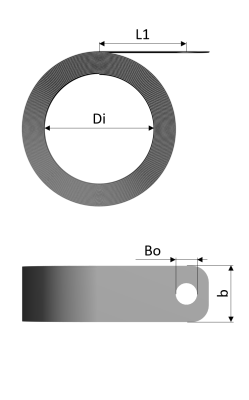

| Thickness | t | 0.127 [mm] |
| Width | b | 7.9 [mm] |
| Total Length | L0 | 432 [mm] |
| Min. Working Length | L1 | 16.82 [mm] |
| Max. Working Length | Lmax | 372 [mm] |
| Inner ø | Di | 9.4 [mm] |
| Drum ø | Do | 11.28 [mm] |
| Force | F | 4.6 [N] |
| Distance | A | 4.75 [mm] |
| Material | 1.4310 | |
| Weight | 3.420 [g] | |
| Hole Diameter | Bo | 3.3 [mm] |
| Radius | R | 12.7 [mm] |
| Life Cycles | 4000 [n] |
| Amount | Price €/Piece |
|---|---|
| 1 | 12.2700 EUR |
| 10 | 9.8200 EUR |
| 100 | 6.1400 EUR |
| 500 | 1.9500 EUR |
| 1000 | 1.8400 EUR |
| Delivery time | Stock quantity |
|---|---|
| Immediately | 21 |
| 7 Days | 131 |
| 28 Days | 504 |
| Total | 656 |
| Further parts | on request |
CAD preview
Download CAD
