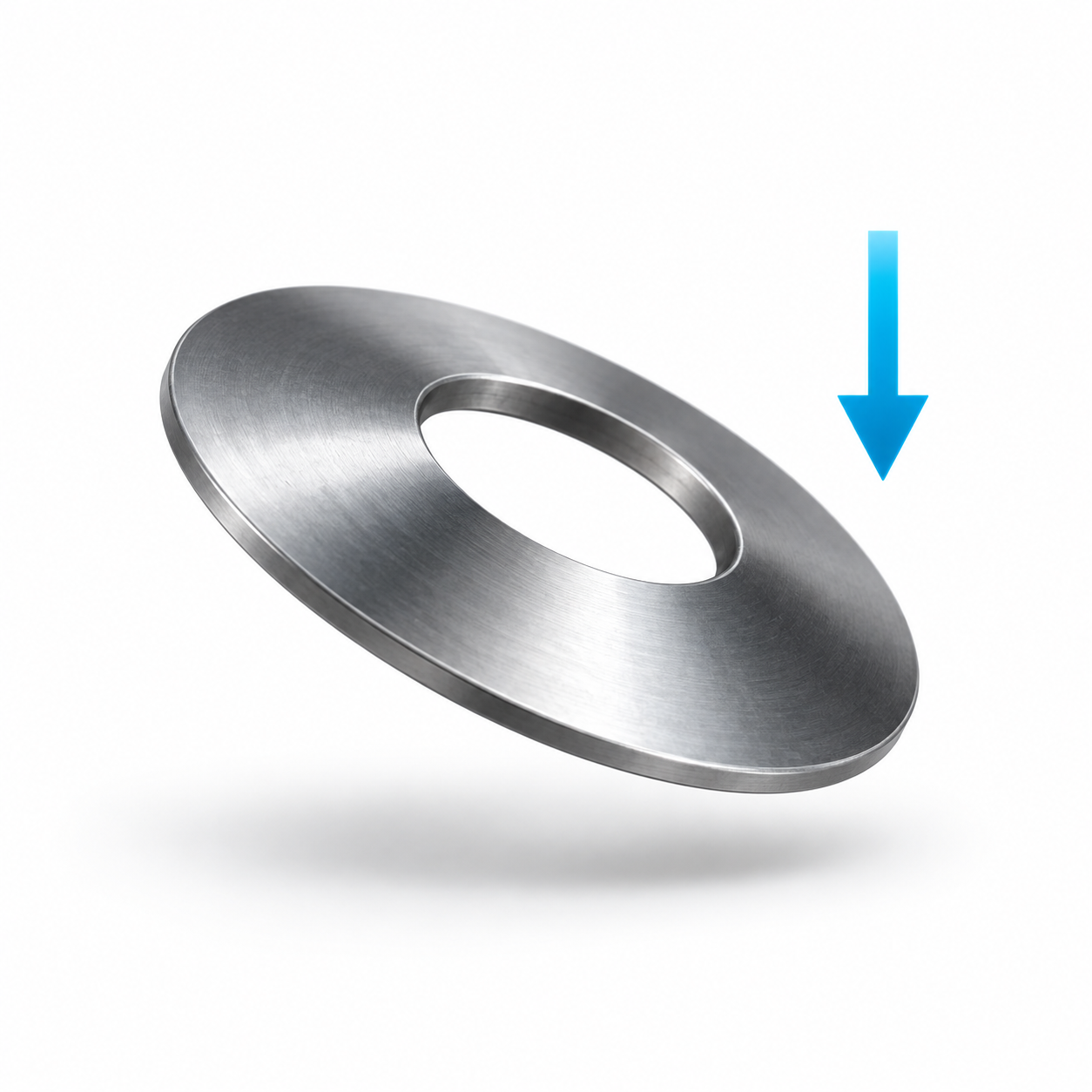

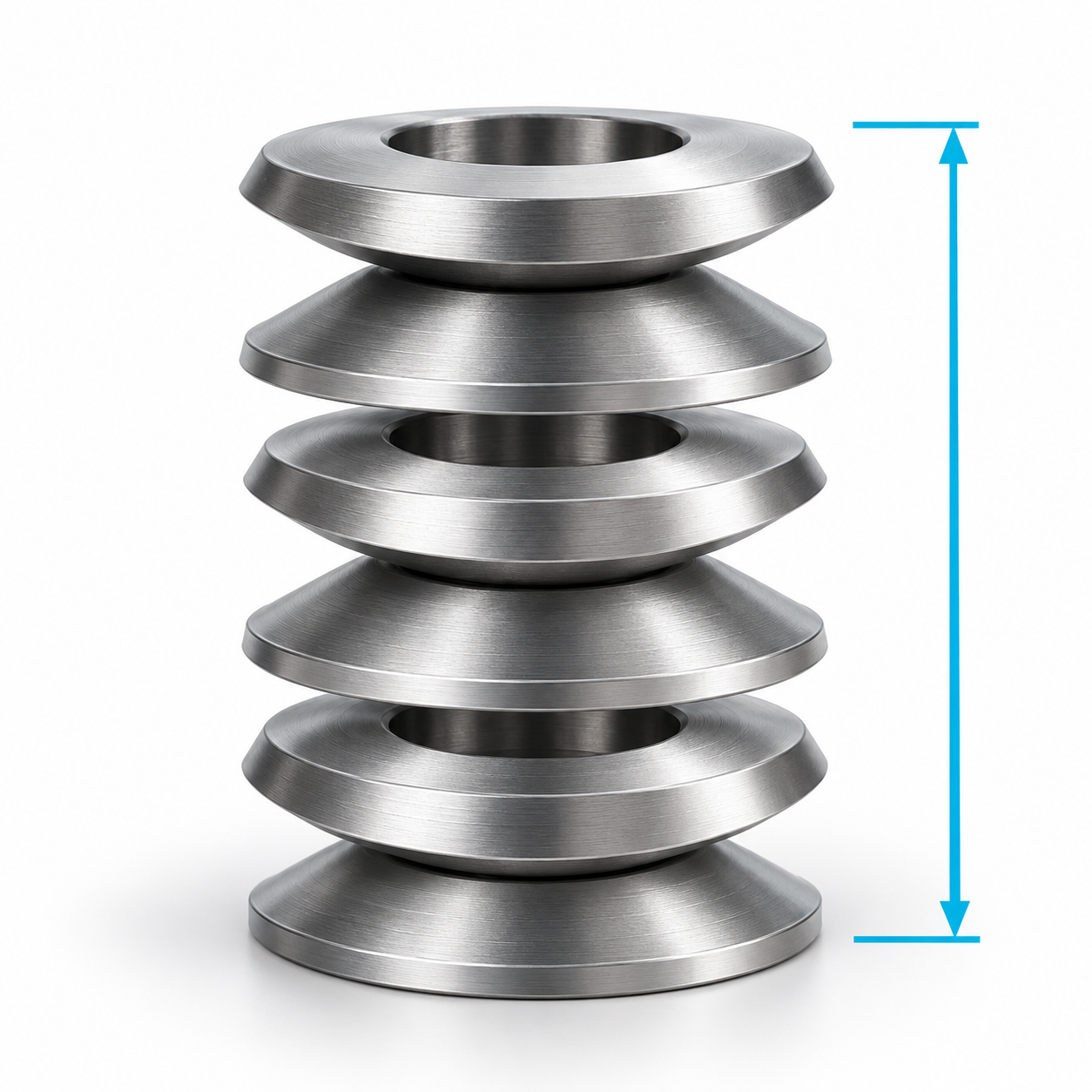

Disc Springs
Our disc springs range includes disc springs according to EN 16983 (DIN 2093) & Belleville disc springs, ball bearing disc springs and Clover®Dome disc springs.
Disc Springs Material
Material Number |
Material Description |
Modulus of Rigidity G N/mm2 |
Young's Modulus E N/mm2 |
Tensile Strength RM N/mm2 |
Tmax °C |
Use |
| 1.1231 | Ck67 (C67S) | 81500 | 210000 | -40 until +80 | Cold-rolled music wire (spring steel) for standard applications disc springs, wave spring washers, leaf springs | |
| 1.1248 | Ck75 (C75S) | 81500 | 210000 | -40 until +80 | Cold-rolled music wire (spring steel) for standard applications disc springs, wave spring washers, leaf springs | |
| 1.8159 | 51CrV4 | 78500 | 206000 | 1350-1650 | -40 until +80 | Hardenable music wire (spring steel) for applications in large wire sizes also suitable for highly dynamic applications chassis springs, turbines |
| 1.4310 | X10CrNi18-8 (V2A) |
73000 | 187500 | 1300-2600 |
-200 until +250
|
Stainless steel for the most common applications suitable for a humid environment, but not seawater resistant slightly magnetic due to work hardening
|
| 1.4568 | X7CrNiAl17-7 | 78000 | 200000 | 1150-2000 |
-200 until +350
|
Precipitation-hardenable chromium-nickel steel for dynamic loads has excellent corrosion resistance aerospace, food industry
|
Disc Springs custom Applications
- For custom applications in Inconel 718 (2.4668) or X750 (2.4669) as well as any custom dimensions up to 1000 mm diameter, please contact us
Disc Springs Applications
- Automotive
- Electrical Engineering
- Mechanical Engineering
- Apparatus Engineering
- Precision Engineering
- Valves
- Chemical Industry
