Disc Springs for Ball Bearings - Part number Febrotec: 0KN-403051

[ KN-403051 | 9,8x6,2x0,2 | OKN-403051 ]
Disc Springs for Ball Bearings

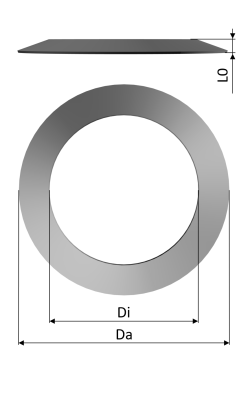

Outer ø Da 9.8 [mm]
Inner ø Di 6.2 [mm]
Thickness t 0.2 [mm]
Unloaded Length L0 0.4 [mm]
Loaded Length L1 0.25 [mm]
Force at L1 F1 23 [N]
Slotted No
Material Code 1.1231
Weight 0.072 [g]
Amount Price €/Piece
1 0.0890 EUR
Delivery time Stock quantity
Immediately 21256
35 Days 42907
Total 64163
Further parts on request
