Disc Springs for Ball Bearings - Part number Febrotec: 0KNS-419690

Disc Springs for Ball Bearings

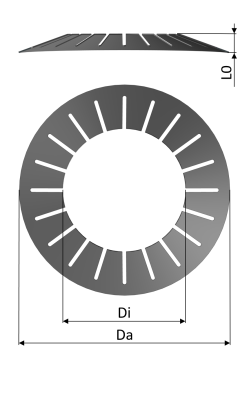

Outer ø Da 18.8 [mm]
Inner ø Di 10.2 [mm]
Thickness t 0.25 [mm]
Unloaded Length L0 1.05 [mm]
Loaded Length L1 0.45 [mm]
Force at L1 F1 24 [N]
Slotted Yes
Material Code 1.1231
Weight 0.320 [g]
Amount Price €/Piece
1 0.1040 EUR
Delivery time Stock quantity
Immediately 864
Total 864
Further parts on request
