  1. Products
  2. Torsion Springs

Torsion Springs

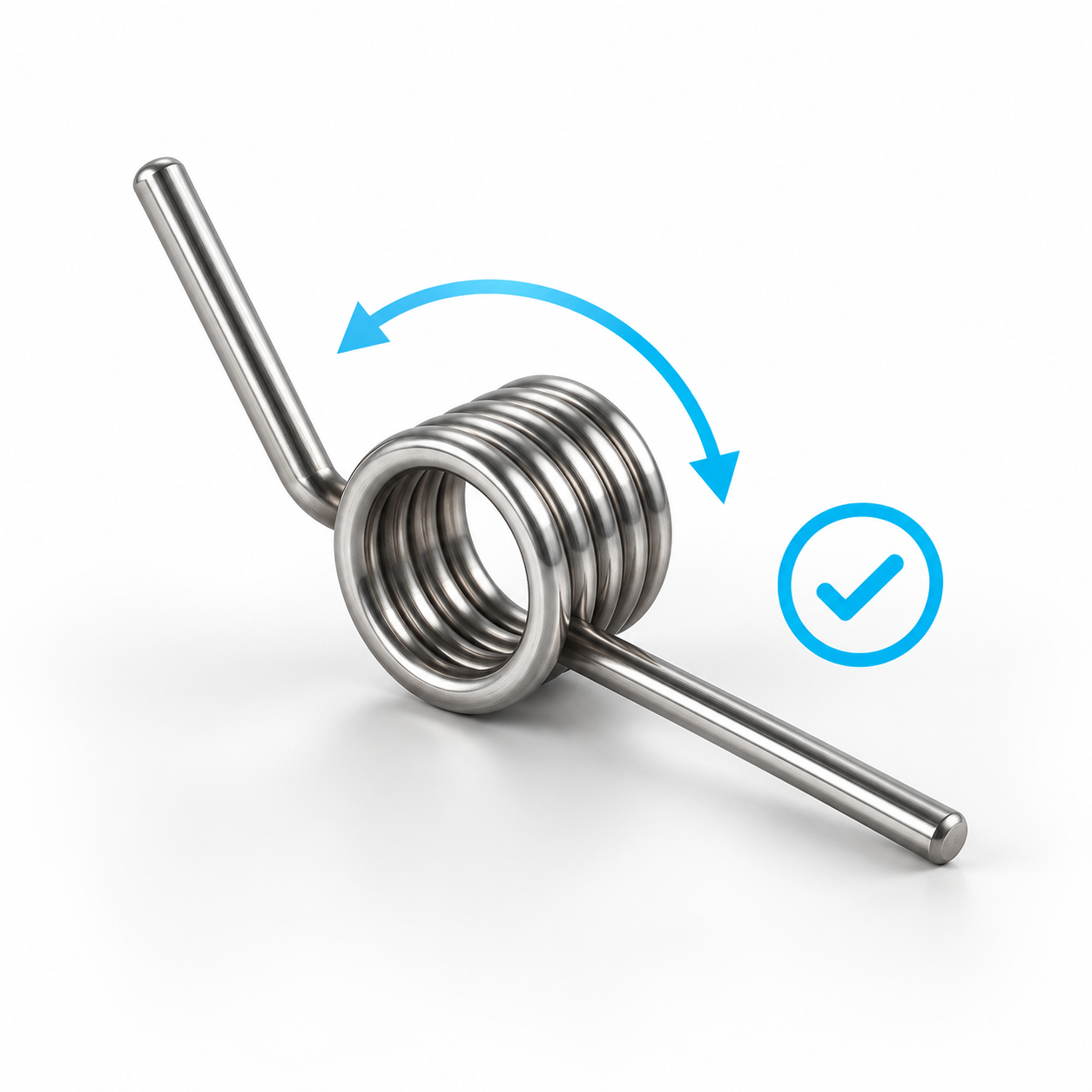

Torsion springs with straight torsion ends, left-hand & right-hand wind | Febrotec
Part Number Wire ø Outer ø Max. Torque Max. Torsion Max. Mandrel ø Leg Length Active Coils Direction Material Code Stock
d Da Md alpha M/S E n Available
[mm] [mm] [Nmm] [°] [mm] [mm]
TotalImmediately
0T012-090-055 0.3 2.36 5.31 57.2 1.4 9.52 2.25 90° 1.4310
259 156
Details
0T012-090-055L 0.3 2.36 5.31 57.2 1.4 9.52 2.25 90° 1.4310
330 308
Details
0T012-180-067 0.3 2.77 5.31 152.3 1.7 9.52 5 180° 1.4310
1018 53
Details
0T012-180-067L 0.3 2.77 5.31 152.3 1.7 9.52 5 180° 1.4310
657 605
Details
0T012-180-109 0.3 4.22 5.31 145 2.77 12.7 3 180° 1.4310
256 124
Details
0T012-180-109L 0.3 4.22 5.31 145 2.77 12.7 3 180° 1.4310
1273 1258
Details
0T012-270-062 0.3 2.59 5.31 247.1 1.57 9.52 8.75 270° 1.4310
76 76
Details
0T012-270-062L 0.3 2.59 5.31 247.1 1.57 9.52 8.75 270° 1.4310
134 62
Details
0T012-270-109 0.3 4.32 5.31 235.4 2.77 12.7 4.75 270° 1.4310
531 4
Details
0T012-270-109L 0.3 4.32 5.31 235.4 2.77 12.7 4.75 270° 1.4310
409 0
Details
0T012-360-109 0.3 4.42 5.31 330.2 2.77 12.7 6.5 360° 1.4310
79 27
Details
0T012-360-109L 0.3 4.42 5.31 330.2 2.77 12.7 6.5 360° 1.4310
65 27
Details
entries per page <
1 2 … 30
 >


Our torsion springs exert a force in the opposite direction of the applied force. These springs provide even tension, alongside smooth and frictionless motion and are frequently used in the automotive industry in vehicle suspension systems or different types of door hinges and in complex medical equipment like hospital beds.



Torsion Spring Types

  • Standard – straight torsion ends
  • Right-hand and left-hand wind
  • Special end-positions are finished on request



Torsion Spring Material

  • 1.4310 stainless steel



Torsion Spring Applications

  • Door Hinges
  • Mechanical Engineering
  • Precision Engineering
  • Consumer Goods
  • Medical Equipment
