  1. Products
  2. Torsion Springs
  3. 0T012-180-067L

Torsion Springs - Part number Febrotec: 0T012-180-067L

[ T012-180-067L | LT-012A-2L | TO-5002L | L012180067 | OT012-180-067L ]
Torsion Springs

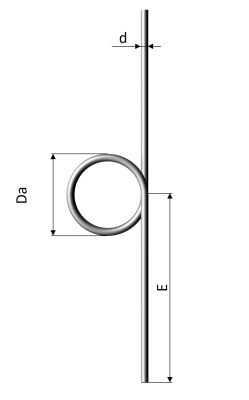

Wire ø d 0.3 [mm]
Outer ø Da 2.77 [mm]
Max. Torque Md 5.31 [Nmm]
Max. Torsion alpha 152.3 [°]
Max. Mandrel ø M/S 1.7 [mm]
Leg Length E 9.52 [mm]
Active Coils n 5
Leg Type 2
Direction 180°
Material Code 1.4310
Direction of Helix links/left
Amount Price €/Piece
1 2.3900 EUR
10 1.9100 EUR
100 1.1900 EUR
500 0.4500 EUR
1000 0.3600 EUR
10000 0.1100 EUR
Delivery time Stock quantity
Immediately 605
7 Days 52
Total 657
Further parts on request

CAD preview
Download CAD
Go back to overview
