Torsion Springs - Part number Febrotec: 0T012-270-062L

[ T012-270-062L | LT-012A-3LS | TO-5000LS | L012270062 | OT012-270-062L ]

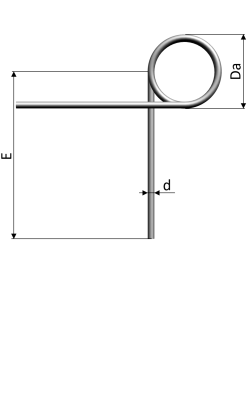

Torsion Springs
Wire ø d 0.3 [mm]
Outer ø Da 2.59 [mm]
Max. Torque Md 5.31 [Nmm]
Max. Torsion alpha 247.1 [°]
Max. Mandrel ø M/S 1.57 [mm]
Leg Length E 9.52 [mm]
Active Coils n 8.75
Leg Type 3
Direction 270°
Material Code 1.4310
Direction of Helix links/left
Amount Price €/Piece
1 2.3900 EUR
10 1.9100 EUR
100 1.1900 EUR
500 0.4500 EUR
1000 0.3600 EUR
10000 0.1100 EUR
Delivery time Stock quantity
Immediately 62
7 Days 72
Total 134
Further parts on request

CAD preview
Download CAD
