Torsion Springs - Part number Febrotec: 0T012-360-109L

[ T012-360-109L | LT-017C-1L | TO-5009L | L012360109 | OT012-360-109L ]
Torsion Springs
Wire ø d 0.3 [mm]
Outer ø Da 4.42 [mm]
Max. Torque Md 5.31 [Nmm]
Max. Torsion alpha 330.2 [°]
Max. Mandrel ø M/S 2.77 [mm]
Leg Length E 12.7 [mm]
Active Coils n 6.5
Leg Type 4
Direction 360°
Material Code 1.4310
Direction of Helix links/left
Amount Price €/Piece
1 2.3900 EUR
10 1.9100 EUR
100 1.1900 EUR
500 0.4500 EUR
1000 0.3600 EUR
10000 0.1100 EUR
Delivery time Stock quantity
Immediately 27
7 Days 38
Total 65
Further parts on request

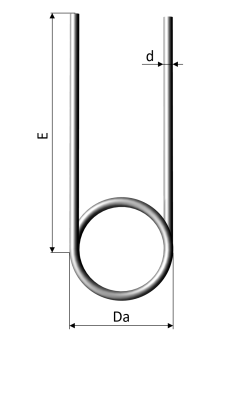

CAD preview
