Finger Spring Washers - Part number Febrotec: 0F60400
[ F60400 | F0595010 | OF60400 ]

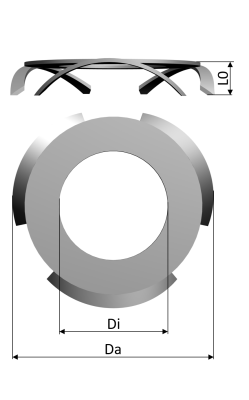

| Outside ø | Da | 15.11 [mm] |
| Inside ø | Di | 7.92 [mm] |
| Thickness | t | 0.25 [mm] |
| Unloaded Length | L0 | 2.38 [mm] |
| Loaded Length | L1 | 1.57 [mm] |
| Force Min. at Loaded Length L1 | F1min | 1.33 [N] |
| Force Max. at Loaded Length L1 | F1max | 6.67 [N] |
| Hole for Bearing | B | 16 [mm] |
| Number of Fingers | N | 3 |
| Material Code | 1.1231 |
| Amount | Price €/Piece |
|---|---|
| 1 | 3.9100 EUR |
| 10 | 3.1300 EUR |
| 100 | 1.6500 EUR |
| 500 | 0.7400 EUR |
| 1000 | 0.6100 EUR |
| 10000 | 0.5300 EUR |
| Delivery time | Stock quantity |
|---|---|
| Immediately | 901 |
| 7 Days | 307 |
| Total | 1208 |
| Further parts | on request |
CAD preview
Download CAD
