Multi Wave Washers - Part number Febrotec: 0MW0236-0010-01S
[ YCM06-L3-S17 | MWL-6SQ-C | MW0236-0010-01S | 0236001001S | OMW0236-0010-01S ]

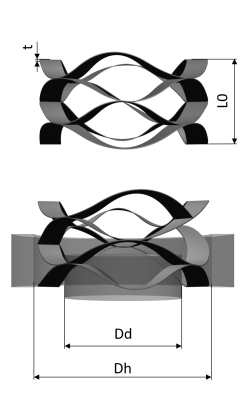

| Hole ø | Dh | 6 [mm] |
| Shaft ø | Dd | 4 [mm] |
| Unloaded Length | L0 | 2.54 [mm] |
| Loaded Length | L1 | 1.02 [mm] |
| Force at L1 | F1 | 6 [N] |
| Spring Rate | c | 3.950 [N/mm] |
| Number of Coils | n | 5 |
| Number of Waves | i | 2.5 |
| Material Height | 0.13 [mm] | |
| Material Width | 0.51 [mm] | |
| Material Code | 1.4568 | |
| Weight | 0.052 [g] |
| Amount | Price €/Piece |
|---|---|
| 1 | 10.4100 EUR |
| 6 | 9.3100 EUR |
| 11 | 8.2200 EUR |
| 26 | 5.2000 EUR |
| 51 | 3.5600 EUR |
| 100 | 2.4700 EUR |
| 250 | 1.7200 EUR |
| 500 | 1.3700 EUR |
| 1000 | 1.0400 EUR |
| 2500 | 0.8600 EUR |
| 5000 | 0.6500 EUR |
| 10000 | 0.5500 EUR |
| Delivery time | Stock quantity |
|---|---|
| Immediately | 12 |
| 21 Days | 855 |
| Total | 867 |
| Further parts | on request |
CAD preview
Download CAD
