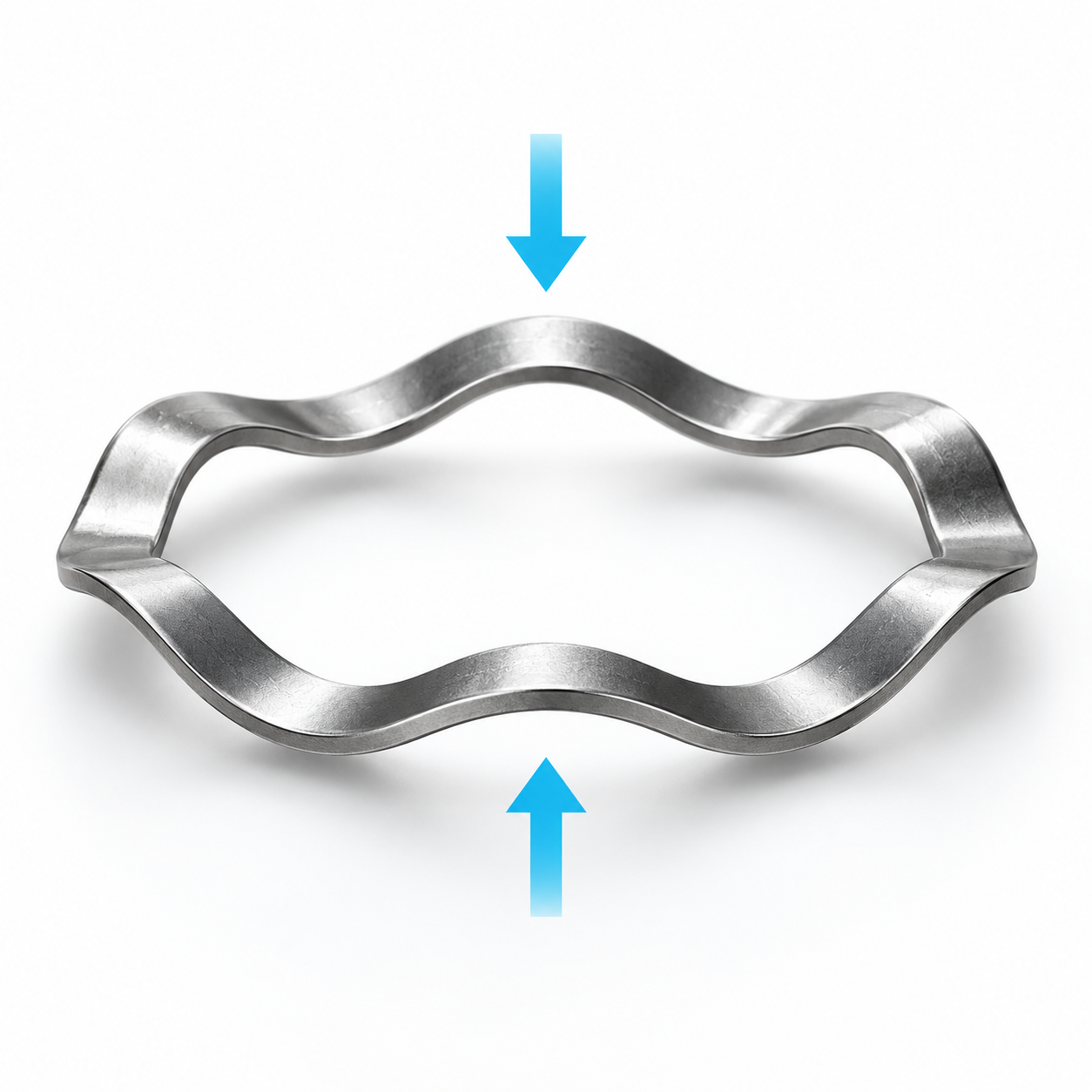

Wave Spring Washers

Waved spring washers ensure smoother running & a longer service life for ball bearings | Febrotec
Part Number Outer ø Inner ø Thickness Unloaded Height Number of Waves Rate (c.) Loaded Length Force at Loaded Length L1 Type Material Code Stock
Da Di t L0 c L1 F1 Available
[mm] [mm] [mm] [mm] [N/mm] [mm] [N]
TotalImmediately
0W61300R 4.65 3.4 0.09 0.58 2 6.070 0.3 1,7 ± 0,8 Precision 1.4310
75448 35127
Details
0W61310R 6.15 4.92 0.14 0.76 2 8.680 0.38 3,3 ± 1,1 Precision 1.4310
164923 67173
Details
0W0264-004 6.6 4.5 0.1 0.9 3 26.000 0.4 13 ± 5 Precision 1.1248
6881 6881
Details
0W61320R 7.75 6.17 0.17 0.76 2 8.680 0.38 3,3 ± 1,1 Precision 1.4310
143670 39808
Details
0W0323-004 8.2 5.2 0.1 0.9 3 32.000 0.4 16 ± 4 Precision 1.1248
5597 5597
Details
0W0323-008 8.2 5.6 0.2 1.1 3 107.690 0.45 70 ± 15 Precision 1.1248
18124 18124
Details
0W61330 9.32 6.73 0.15 0.76 3 35.000 0.38 13,3 ± 6,7 Precision 1.1248
27160 6304
Details
0W61340R 9.32 6.73 0.15 0.76 3 35.000 0.38 13,3 ± 4,9 Precision 1.4310
100490 69034
Details
0W0386-004 9.8 6.4 0.1 1.2 3 23.080 0.55 15 ± 5 Precision 1.1248
26478 26478
Details
0W0386-008 9.8 6.4 0.2 1.3 3 106.670 0.55 80 ± 16 Precision 1.1248
1710 1710
Details
0W0465-004 11.8 7.6 0.1 1.2 3 23.080 0.55 15 ± 5 Precision 1.1248
8703 8703
Details
0W0472-006 11.9 8.3 0.15 1.2 3 36.920 0.55 24 ± 5 Precision 1.1248
6513 6513
Details
entries per page <
1 2 17
>


Due to the triple wave, a three-line support is created when the wave spring washer is supported, which results in optimum force transmission, e.g. as a support for ball bearings. Our wave spring washers are ideal for tolerance compensation. They can absorb vibrations which, for example, in the case of ball bearings, lead to smoother running and a longer service life.



Existing Variants

  • stamped with a continuous outer edge
